Miniaturized High Q-factor Filters
Designed to provide excellent frequency selectivity and low insertion loss within a reduced form factor.
Their robust design ensures stable performance over temperature and mechanical stress, making them suitable for satellite payloads, ground equipment, and modern communication platforms.
They are based on metal cavities loaded with high-performance ceramic parts.
CUSTOM DEVELOPMENTS

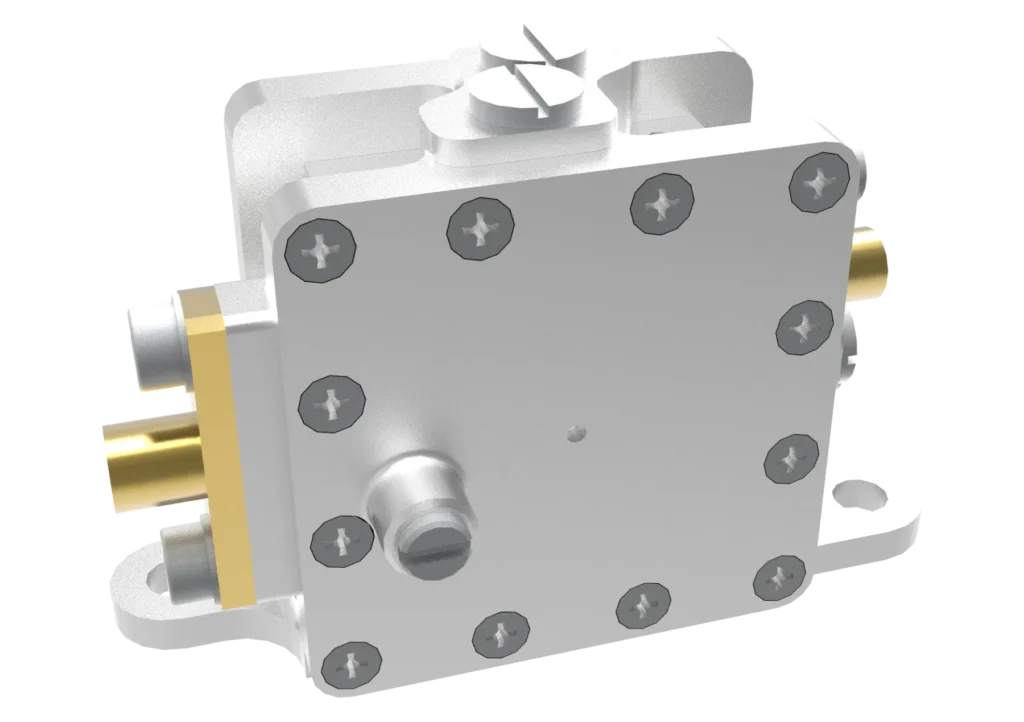

L-band Dielectric-Loaded Filters
Ceramic filter developed for on-board satellite applications.
It is a custom and very miniaturized solution for an input filter atL-band for Mobile Satellite Service applications. 50Ω SMP interfaces are used as RF input/output.
Key Features
- Central Frequency: 1618.25 MHz
- Bandwidth: 16.5 MHz
- Max Insertion Loss: 0.7 dB
- Size: 40x40x28 mm
- Mass: 50 g
- Operating temp: -35°C / +80°C
